EcoFlow DELTA Max + 220W Portable Solar Panel

$2,199.00 – $3,499.00 Exc. Vat

Model

Number of Solar Panel

Clear

Home emergency power DELTA Max expands up to 6kWh with smart extra batteries, keeping your home powered on in any emergency.

Rapid dual charging Charge up from 0-80% in 65 minutes. Or get up to 3400W speeds by combining AC charging and the EcoFlow Smart Generator.

Power multiple devices Looking for something to power heavy-duty devices like your fridge and dryer? With X-Boost, DELTA Max handles devices up to 3400W with ease. Learn more about DELTA Max >>

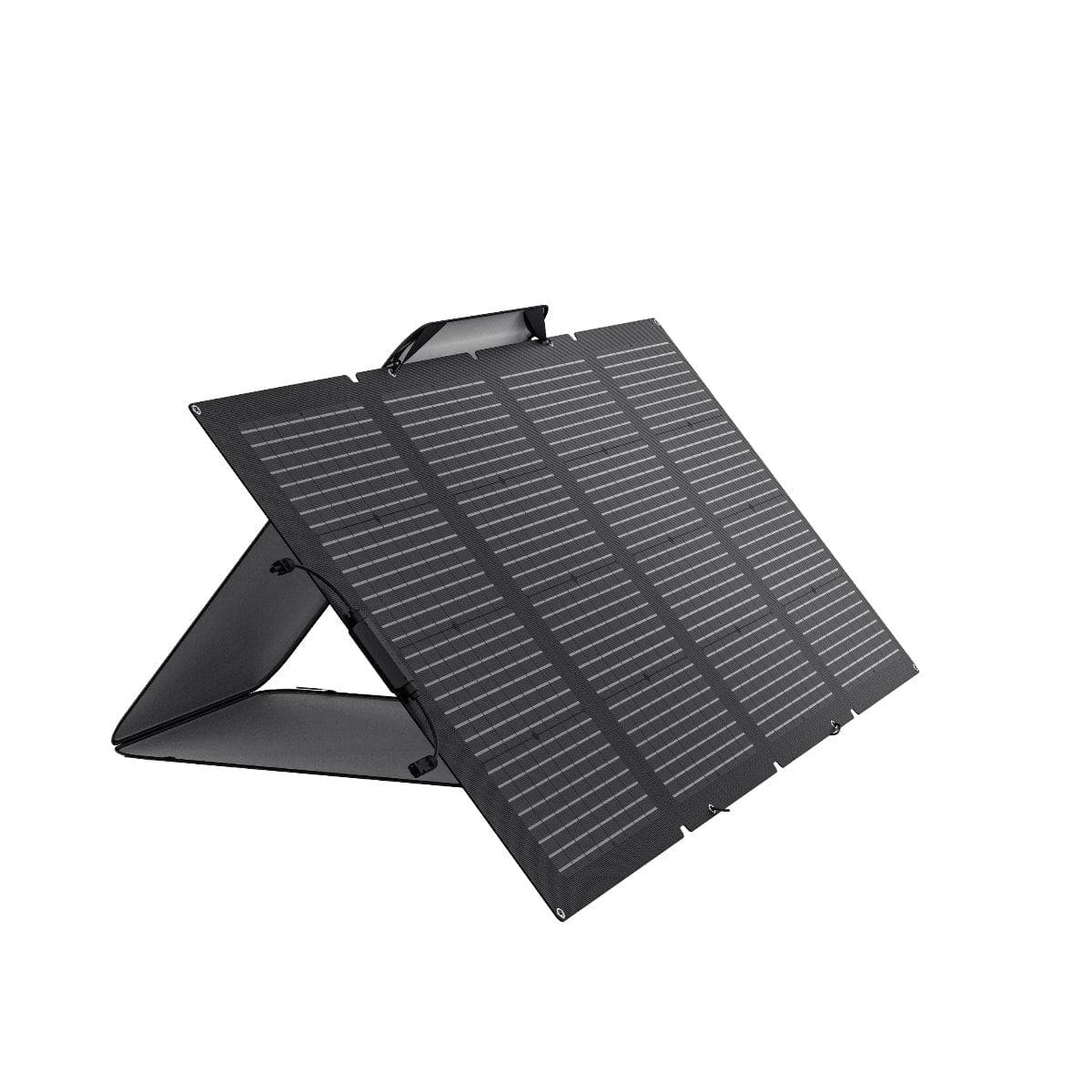

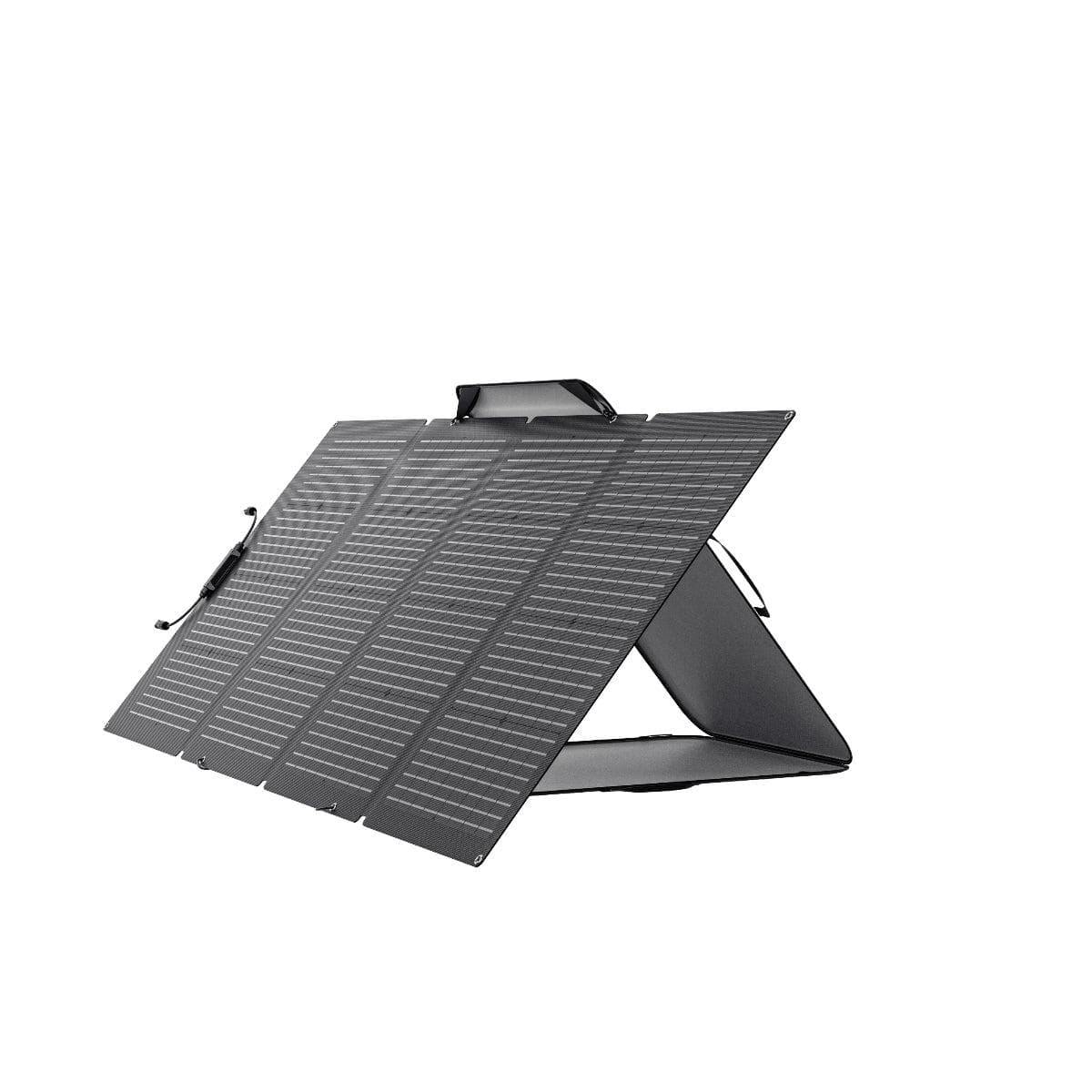

Two in one EcoFlow’s 220W Bifacial Portable Solar Panel is two in one. With a 220W primary side, and a 155W side on the back for ambient light, you can capture up to 25% more solar energy and charge your portable power station even faster.

Tempered glass. Built to last The thin, one-piece tempered glass design makes it five times tougher than comparable panels, it can withstand heat up to 300°F too. Safe to say it can withstand the elements. Learn more about 220W Solar Panel >>

Play Video

Backup your home during power outages with DELTA Max. With an expandable capacity that reaches up to 6kWh, dual charging, and the ability to power your home devices, you can stay powered on in any situation.

Expandable Capacity

Dual Charging

Power Multiple Devices

800W max Solar Input

There are multiple ways to charge DELTA Max wherever you are. If you’re at home, plug into an AC wall outlet or solar panels. If you’re out and about, charge DELTA Max in your car or use solar panels if you’ve set up camp. In extreme emergencies during power outages, connect the DELTA Max to the Smart Generator for a last-standing power source.

Multiple ways to charge.

Solar Charging

AC Charging

Smart Generator

Car Charging

Previous slide

Next slide

Frequently Asked Questions

How many solar panels can I use at the same time with DELTA Max?

It depends on the total voltage and watts of solar panels you choose. As long as the solar panels use MC4 connector and its voltage and current are under 11-100V, 13A max range.

What's the max input for DELTA Max?

When charging DELTA Max and its extra battery together, you can reach 3600W max charging speeds by combining any two methods of AC, solar and Smart Generator. For DELTA Max single unit, you can recharge it at standard wall outlets (1800W max), or combine AC and solar charging to reach max 2000W charging speeds.

How does the Emergency Power Supply (EPS) work? And how fast is it?

When your portable power station is plugged into the wall, any electronics plugged into it are powered from the grid and not its battery. When power from the grid stops, as in a blackout, the power station automatically switches to battery power within 30ms.

What's the water-resistance rating for this product?

DELTA Max is not water-resistance, so it should be kept away from liquids. Or if you're looking for water-resistance solution, you can purchase the DELTA Max case to water-resistance protection.

Specs of DELTA Max (2000)

Capacity
2016Wh

AC Output
6 outlets, 2400W total (Surge 5000W)

USB-A Output
2 ports, 5V, 2.4A, 12W Max per port

USB-C Output
2 ports, 5/9/12/15/20V, 5A, 100W Max per port

DC5521 Output
2 ports, 12.6V, 3A, 38W Max per port

Solar Charging Input
800W Max, 11-100V, 13A

Battery Chemistry
NCM

Connection
Wi-Fi

Dimension
19.6*9.5*12 in

Extra Battery
Support up to two DELTA Max Smart Extra Battery/Smart Generator

Max Device(s) Power Supported by X-Boost
3400W

USB-A Fast Charge
2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port

Car Power Output
12.6V, 10A, 126W Max

AC Charging Input
1800W Max, 15A

Car Charging Input
Support 12V/24V battery, 8A

Cycle Life
800 cycles to 80% capacity

Net Weight
Approx. 48lbs

Specs of DELTA Max (1600)

Capacity
1612Wh

AC Output
6*20A outlets, 2000W total (Surge 5000W)

USB-A Output
2 ports, 5V, 2.4A, 12W Max per port

USB-C Output
2 ports, 5/9/12/15/20V, 5A, 100W Max per port

DC5521 Output
2 ports, 12.6V, 3A, 38W Max per port

Solar Charging Input
800W Max, 11-100V, 13A

Battery Chemistry
NCM

Connection
Wi-Fi

Dimension
19.6*9.5*12 in

Extra Battery
Support up to two DELTA Max Smart Extra Battery/Smart Generator

Max Device(s) Power Supported by X-Boost
2800W

USB-A Fast Charge
2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max per port

Car Power Output
12.6V, 10A, 126W Max

AC Charging Input
1600W Max, 15A

Car Charging Input
Support 12V/24V battery, 8A

Cycle Life
500 cycles to 80% capacity

Net Weight
Approx. 48lbs

Specs of 220W Solar Panel

Rated Power
220W Front Side/155W Rear Side

Efficiency
22-23%

Connector Type
Solar Connector

Short Circuit Current
13A (Imp 12.0A) Front Side/ 8.8A (Imp8.4A) Rear Side

Cell Type
Monocrystalline Silicon

Dimensions
82*183*2.5cm (32.3*72.0*1.0 in)

Open Circuit Voltage
21.8V (Vmp 18.4V)

Weight (Solar Panel)
Approx. 9.5kg (20.9lbs)

*DELTA Max needs to be connected to the DELTA Max Smart Extra Battery for dual charging.

Please use the AC Charging Cable included in the package for fast charging. Do not use other cables to charge. Plug directly into an AC wall outlet and make sure that the wall output current is more than 15A. Otherwise, reduce the unit charging speed with the AC Charge Speed Switch. EcoFlow takes no responsibilities for any consequences caused by failures to follow instructions, including but not limited to charging with other AC charging cables.
