DELTA Pro
Expandable
Ecosystem
3.6-25kWh
Capacity
1600W
Solar Input
LFP Battery
Chemistry
3600W-7200W
AC Output
EV Station Charging
Flow Charge
Multiple Charging
Methods
6500W
MultiCharge

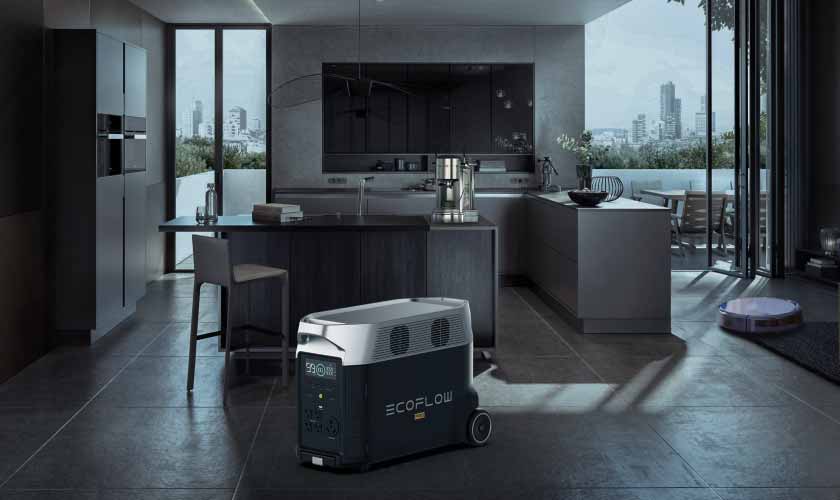

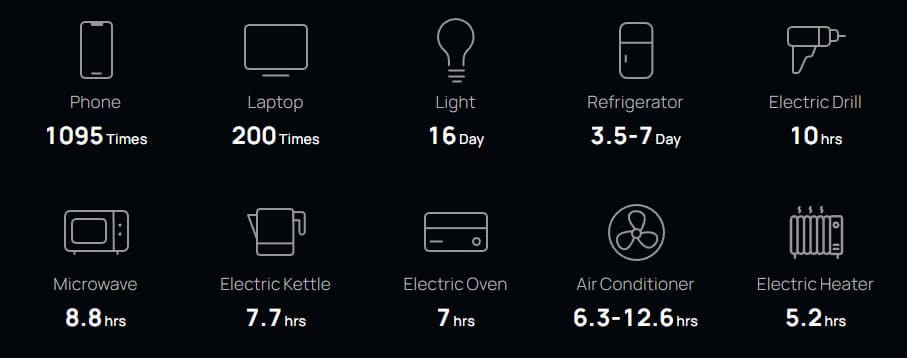

Power your
home for days.
DELTA Pro’s capacity starts at 3.6kWh. Enough for hours of heavy-duty use. It doesn’t stop there either, expand all the way to an industry leading 25kWh by adding another unit, Extra Batteries and Smart Generators. That’ll keep you going even during extended blackouts.

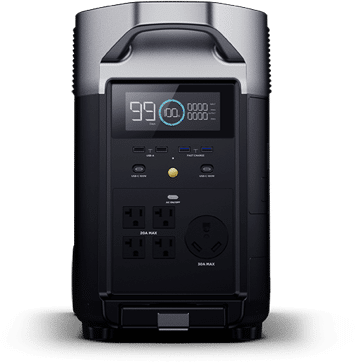

A single DELTA Pro has a massive 3.6kWh battery capacity. With a portable luggage-like design, that’s a whole lot of energy to take camping, on road trips, or to keep in your garage.
Take your backup power to the next level with two Smart Extra Batteries for your DELTA Pro. With that, you’ll have 10.8kWh to take you through severe blackouts.

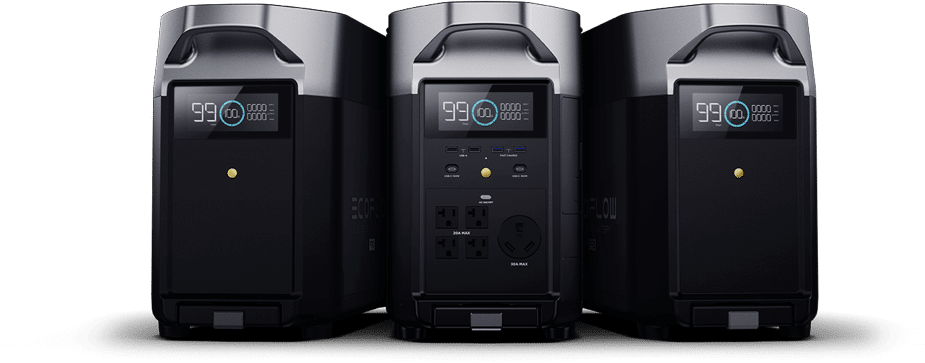

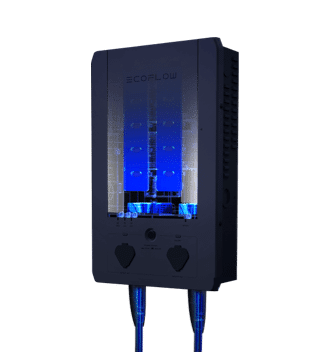

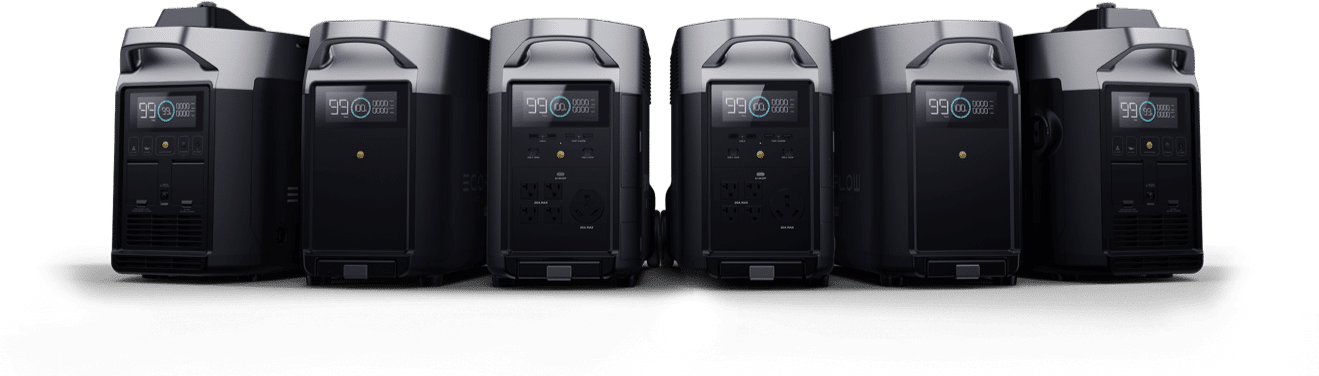

Add another DELTA Pro to the mix and you can have the ultimate home power solution. Two DELTA Pros, two Extra Batteries and two Smart Generators. Integrate it all into your home circuits with the Smart Home Panel.
3600W-7200W AC Output
Power pretty much anything.
Power through work. Energize your time outdoors. 882Wh is a whole lot of energy to keep you going no matter what, and an Energy Protection System keeps you charged even during blackouts.

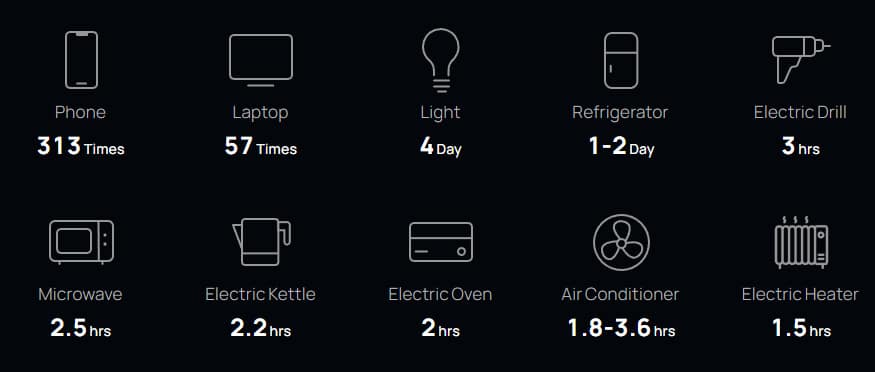

AC units, kitchen appliances and power tools are all accessible with DELTA Pro. Use a single unit to power up to 4500W¹ of appliances. Need even more power? Chain two units together to hit a record-breaking 7200W, 240V output².
¹ With X-Boost mode turned on.
² Requires use of the Double Voltage Hub or Smart Home Panel (both sold separately).
Heading outdoors? Power your whole RV or campsite and rest easy knowing you’ve got enough power to keep you going for the long-haul. With DELTA Pro’s plethora of ports, you can even power up to 15 devices at once.
Introducing
FlowCharge.
Stay prepared no matter what. DELTA Pro introduces FlowCharge. Now, you can charge anytime, anywhere and at the fastest speeds.
MultiCharge
technology.
We’ve raised the bar when it comes to charging speeds. Combine AC, solar, and the Smart Generator at the same time to get record-breaking 6500W charging speeds.

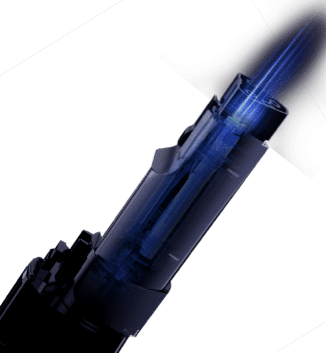

One port to make things simple.

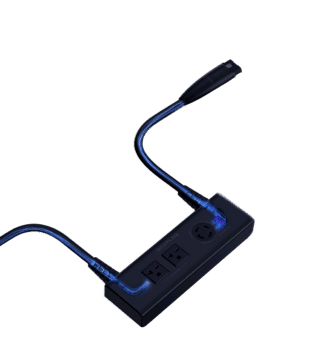

DELTA Pro’s unique infinity port combines both AC input and output into one. It doesn’t just enable the world’s fastest charging and EV station charging, it also serves as a connection point for the Smart Home Panel and Double Voltage Hub. That means less adapters and cables for your setup.
It's smarter
than it looks.

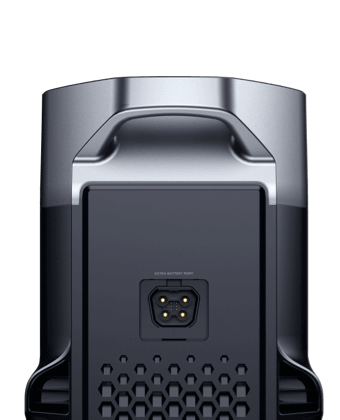

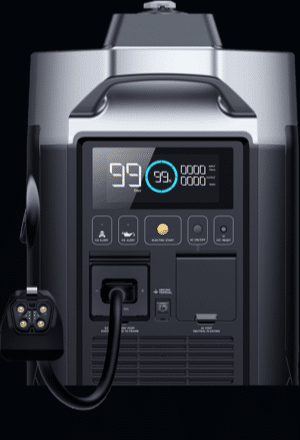

The extra battery port serves as a way to connect an extra battery, or even the Smart Generator to your DELTA Pro. It can discharge and recharge the Extra Battery simultaneously so you only have to operate one unit, saving you time and effort. The port also communicates with the Smart Generator to enable auto-start up when your battery levels drop to a predefined level.
Battery + Inverter Technology
Built to last.
Batteries come in different shapes, sizes, and chemistries. DELTA Pro picks the best of the bunch for home backup with a LiFePO4 battery chemistry. That’ll give you 6500+ cycles¹ so your battery will stand the test of time.
A battery to stand the test of time.
Batteries come in different shapes, sizes, and chemistries. DELTA Pro picks the best of the bunch for home backup with a LiFePO4 battery chemistry. That’ll give you 6500+ cycles¹ so your battery will stand the test of time.
¹Approx. 6500+ cycles at 50% capacity.
And it keeps its cool.
Not only will your battery last years of heavy-duty use, it puts safety first too. Our advanced battery management system regulates voltage, current, and temperature in real time to ensure safe and optimal performance.
Say goodbye to bulky chargers.
DELTA Pro’s two-way inverter in built in. That means a sleek, lightweight charging cable without the brick you’re used to. It enables X-Stream fast charging and X-Boost technology too. With that, you can power pretty much anything.
Interior & Exterior Design
Let's
get down to
details
DELTA Pro is designed inside and out for ease of use, durability and safety. Take a closer look.

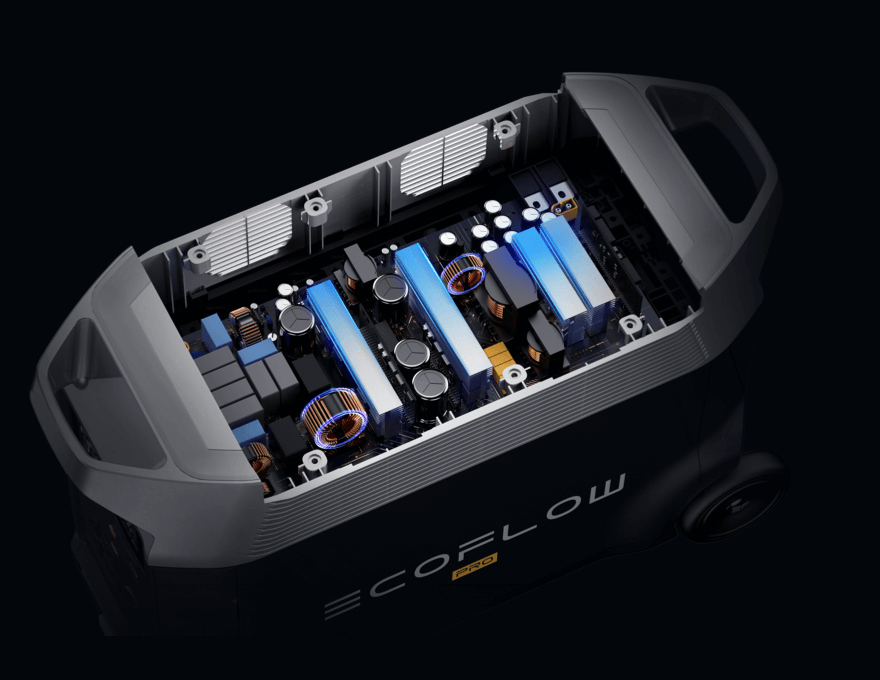

Interior Design

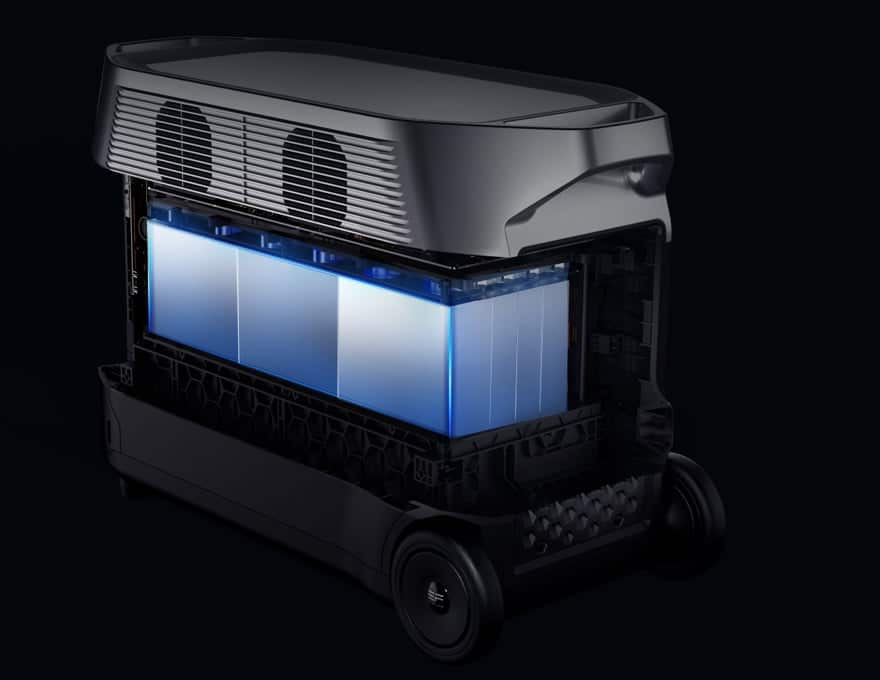

Each wire is secured and plated in copper, a key consideration in case of knocks and jolts, all while providing extra cooling. The 4 fans up auto-regulate to breathe ventilation through the unit for extra cooling.
Exterior Design
Designed with tough ABS plastic, the exterior of DELTA Pro can take a tumble. As an added measure, we made it fire resistant too.
Interior Design
Each wire is secured and plated in copper, a key consideration in case of knocks and jolts, all while providing extra cooling. The 4 fans up auto-regulate to breathe ventilation through the unit for extra cooling.
Take control
of your energy consumption.
Wired control
DELTA Pro is the first portable power station with a remote control. Mount it up, wire it up and control from a distance.
Wireless control
Use the remote control via bluetooth to control without wires. Or, link the EcoFlow app and control from anywhere with a wi-fi connection.

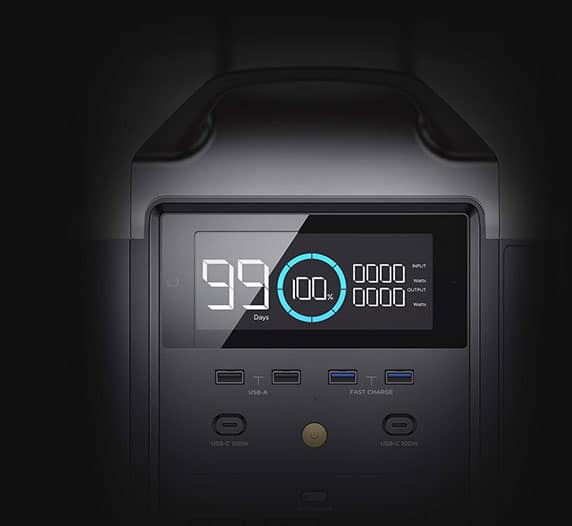

On-unit control
DELTA Pro’s tactile buttons on the front of the unit pair with a bright LCD screen to give you all the control and information you need.
You might also like
FAQ
1. Connects DELTA Pro to Smart Home Panel.
2. Connects DELTA Pro to another DELTA Pro via the Double Voltage Hub.
3. For EV charging, with the EV Charging Adapter.
Connecting 2 DELTA Pros with a Double Voltage Hub or Smart Home Panel and adding 2 Extra Batteries to each DELTA Pro provide a capacity of 21.5 kWh.
Two DELTA Pros connected by the Smart Home Panel and a Double Voltage Hub provide 240V, 7200W power, and 7200Wh for your home appliances.
Using Multi-Charge, DELTA Pro has a maximum input of 6500W:
Smart Home Panel/240V Outlet/EV Charger + 1600W (4x400W) Solar Panels + Smart Generator/Solar Charge Controller.
301: Cell Under Voltage – Need a timely recharge
302: BMS Lost Connection – Reboot
303: INV Lost Connection – Reboot
102: Cell Under Voltage Alert – No discharge, timely recharge
077: Cell Voltage Differences are too great – Long press the power button for 10 seconds and wait for half an hour.
Different power stations have various conditions that prompt the fan to start running of fan operation, for RIVER series, you can set that manually in the app, or set it to always be on.
For DELTA (1300), the fan will turn on when the internal temperature is greater than 45°C.
Yes, but please note:
– The transfer switch should be connected to the power station’s AC output port;
– You should disconnect the circuits from the grid before they are supported by the power station;
– The total power consumption of the circuits should not exceed the output power rating;
– The output will not be grounded if the power station is not connected to the grid.
No, this is because the car charging and solar charging cables share the same input (XT60 outlet).
Yes, we recommend connecting 2 same units in series at most. Furthermore, please also note:
1. The slave unit must be fully charged before being connected.
2. Must not charge the main unit when the slave is connected.
So far, DELTA Pro/Smart Home Panel/Solar Tracker have a bluetooth module and can connect to the app via bluetooth. Other models without bluetooth can connect to the app via IOT or Direct Connection.
Discharge the unit to 0%, then charge to 100% until there is no input.
Perform three times SoC calibration by doing three complete charges and discharges.
1. If charging from an AC outlet, check that the AC switch is turned on. The same goes for DC outlets.
2. If the AC or DC switch is turned on, and it still cannot charge, confirm whether the output power of DELTA Pro meets the rated charging power of the electrical appliance.
3. When the power from a DC source and car charger is less than 1 watt, the charging power won’t display, but the actual device is charging, try charging another appliance with a larger wattage to see if the charging power displays.
4. When the screen displays an overload alarm, the charging power is too high. Shut down DELTA Pro and leave it to cool down for 30 minutes or try using a low-power device before charging again. If there is still an overload prompt, take a photo or video and contact [email protected]
5. The AC switch will automatically turn off after 12 hours if the power of the electrical appliance is less than 10W.
No, it needs to be a pure sine wave generator.
Only 1 Smart Generator can connect to a DELTA Pro at one time.
Two Delta Pro units can not be charged while connected to a double voltage hub.
Connect two DELTA Pros using an AC cable. One is the master, while the other is the slave unit. Before connecting them, ensure both DELTA Pros are fully charged.
Solar charging and car charging share the same input port, so you cannot use them at the same time.
