DELTA Mini

DELTA mini

Move with Powerharge

1400W
AC Output

882Wh

Capacity

Safe Use with

BMS

300W

Solar Input
Easy Control
Lightweight

10.7KG

Safe Use with

900W AC Input

1400W AC Output

Power 90% of devices.

Don’t let the size fool you. It can take on some high power appliances and tools. With X-Boost on, DELTA mini can even handle appliances and tools rated 1800W.

*2200W for 220V–240V regional versions

The world’s
fastest charging.

EcoFlow’s patented X-Stream technology brings in 900W from the wall, going from 0–80% in 1 hour. Change the charging speed to fit the need.

900w

AC Input*

1

h
0-80% capacity

* Maximum with X-Stream

882Wh Capacity

A pint-sized powerhouse

Power through work. Energize your time outdoors. 882Wh is a whole lot of energy to keep you going no matter what, and an Energy Protection System keeps you charged even during blackouts.

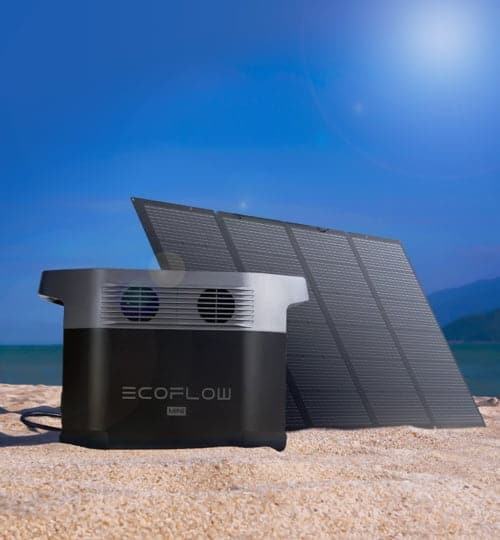

300W Solar Input

Soak up more sun.

Attach your favorite solar panels* and get a full recharge in 4–8 hours*.The built-in Maximum Power Point Tracking (MPPT) algorithm gets more energy from your solar panels regardless of the weather.

*Input of 11–75V, 10A, 300W max; attaches to solar connector
*Tests performed at 1000W/m2, AM1.5,25°C

Portable Design

Ready to go.

Our most portable DELTA yet, it’s under 24 pounds and easy to carry. Everything’s integrated into the unit, so there’s no power brick to bring along.

Battery Management System

Play it safe. Go all out.

Confidence comes when you know your battery can take care of its own. The battery management system keeps your portable power station performing its best when voltage, current, and temperature aren’t ideal.

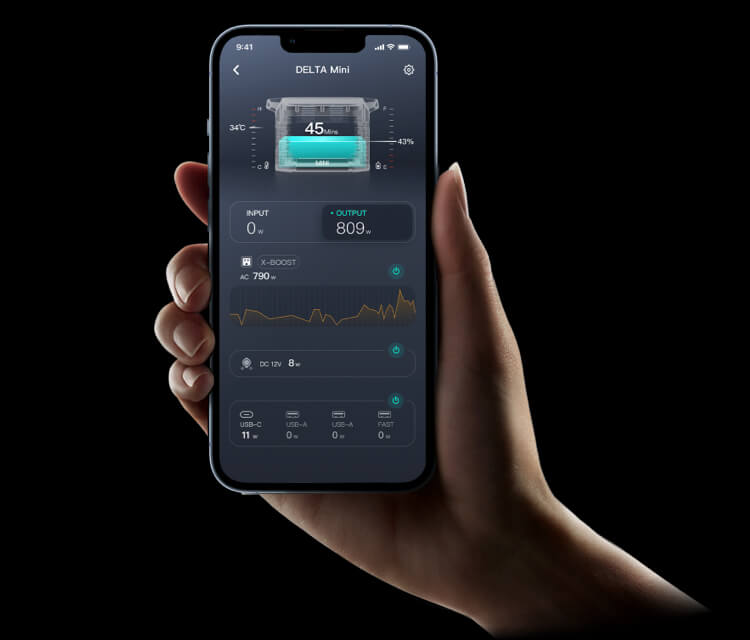

App Support

Control from afar.

The EcoFlow app brings even more to your DELTA mini. Set the charge speed, recharge range, and more. See what your unit sees with real time metrics on how it’s being used. Your phone becomes a remote control that works from anywhere.

You might also like

FAQ

1. Press IOT Button again to try reconnecting with power station.

2. Use another phone hotpot as a router. If you can connect the device to the hotspot network, it means that your router Wi-Fi is not 2.4 GHz. In this case, you can modify the router setting.

When your portable power station is plugged into the wall, any electronics plugged into it are powered from the grid and not its battery. When power from the grid stops, as in a blackout, the power station automatically switches to battery power within 30ms.

When it’s charging, the remaining charging time will be shown on the LCD Screen. Meanwhile, the charging indicator icon begins to rotate with the remaining battery percentage and the input power shown on the right of the circle.

The charging time is shown on the product’s LCD Screen, which can be used to estimate the charging time of most appliances with stable power usage.

1. Please use or store the product in an environment temperature between 20°C to 30°C, away from water, heat, and other metal objects.
2. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months; products that have not been charged and discharged for more than 6 months will not be covered by the free product warranty.
3. For safety, please do not store the product in an environment temperature higher than 45°C or lower than -10°C for a long time.
4. To prolong the battery life, please use the product in an environment temperature between 20°C to 30°C.

Please gently wipe it with a dry, soft, clean cloth or paper towel.

Yes, power station supports charging and discharging when charging in vehicles, solar panel, etc. However, when the battery of the machine is low or is about to run out, it is best not to output while connecting to DC charging (solar/vehicle charging); at this time, if the input of the power is less than or equal to the output power, the device will continue to consume power, which may result in power loss and eventually damage the battery.

DELTA mini’s technical specs for solar input are: 300W, 11–75V DC, 10A max. In practical terms, you can connect multiple solar panels in series (i.e., connecting one panel directly to the next) as long as their combined open circuit voltage doesn’t go over 75V.

Yes, DELTA mini is compatible with portable solar panels that are 10–75V DC, 10A max and that have solar connectors. We recommend using solar panels that have a combined wattage of around 300W.

Yes, it can discharge while it’s recharging from an AC input, car outlet, or solar panel.

Yes, DELTA mini can be charged from solar panels, which is how many people understand solar generators. Call it what you will, but we prefer the term portable power station because DELTA mini doesn’t generate energy internally. As part of a solar panel kit, solar energy will be generated, so calling it a solar generator also works.

DELTA mini is lighter and smaller, and DELTA has a larger battery capacity (882Wh vs 1260Wh) and power output (1400W vs 1800W). The ability to charge from solar panels, vehicles, and wall outlets is the same. Upgrades we gave DELTA mini are support for the EcoFlow app and X-Boost, which lets you power some 2200W appliances.

You can! With our special accessory (coming soon), DELTA mini will double as a portable battery booster.

All rechargeable batteries lose capacity over time but how fast depends on the battery. In ideal conditions, DELTA mini’s battery will have 80% health after 800 cycles; most phone batteries and portable power stations reach 80% health after only 500 cycles.

While both draw inspiration from bigger models, the two are quite different. DELTA mini’s 882Wh capacity and 1400W output make it ideal for powering multiple power tools, special equipment, and home electronics at once. RIVER mini has less capacity and output because it’s much smaller and much lighter.

X-Boost is an EcoFlow technology that lets you power an appliance with a wattage above the portable power station’s normal output. In this case, DELTA mini can power electronics totaling 1400W without X-Boost, but with this feature enabled, you can power electronics totaling 2200W. X-Boost is not for everything, especially not sensitive devices. We recommend using it for things with a heating element that you don’t mind working at a slightly lower temperature.

Sure! But make sure the combined wattage of your electronics doesn’t go over 1400W unless you want to use X-Boost.

You can recharge one DELTA mini with another, but both units will use up some energy in the recharging process. You’ll save battery capacity if they’re not linked.

DELTA mini doesn’t support extra battery units.

DELTA mini’s battery capacity is best suited for backing up only a few appliances during a blackout such as fridges, personal medical devices, and the comforts of home.

Quick Look

Total Outlets

12

X-Boost Output

1800W

Capacity

882Wh

AC Output

1400W

Solar Charging Input

300W

Net weight (lbs)

23.6lbs

Net Weight (kg)

10.7kg

AC Charging

900W

Dimension (cm)

37.0 × 18.3 × 23.6 cm (14.9 × 7.2 × 9.4 in)

Battery Chemistry

NCM

Capacity

Capacity

882Wh

Output

Total Outlets

12

Car Power Output

126W

Number of USB-A Output

2

AC Output

1400W

USB-A Fast Charge

18W

Number of USB-A Fast Charge

1

X-Boost Output

1800W

USB-C Output

100W

DC 5521 Output

13.6V, 3A

Number of USB-C Output

1

USB-A Output

12W

Number of AC Outlets

5

Input

Car Charging

12V/24V, 8A

Solar Charging Input

300W

AC Charging

900W

Battery

Shelf life

1 year

Battery Chemistry

NCM

Cycle life

800 cycles to 80% capacity

General

Certificates

UL, CE, FCC, RoHS, TELEC

Net Weight (kg)

10.7kg

Dimension (inch)

37.0 × 18.3 × 23.6 cm

Net weight (lbs)

23.6lbs

Dimension (cm)

14.9 × 7.2 × 9.4 in

Environmental Operating Temperature

Discharge Temperature (F)

-4°F to 113°F

Storage Temperature (F)

-4°F to 113°F

Charge Temperature (F)

32°F to 113°F

Operating Temperature (F)

68℉ to 86℉

Discharge Temperature (C)

-20°C to 45°C

Storage Temperature (C)

-20°C to 45°C

Charge Temperature (C)

0°C to 45°C

Operating Temperature (C)

20℃ to 30℃

What's in the box

What's in the box

DELTA mini, AC Charging Cable, Car Charging Cable, DC5521 to DC5525 cable, User Manual
